Vertical Pumps
Vertical centrifugal pumps are for transfer and circulation of corrosive and aggressive fluid. Vertical pumps contain a vertical shaft that directly drives the impeller. For the cantilever design, shaft runs contactless so that there is no need for shaft seals and additional bearings. Due to its vertical structure, it is possible to make suction from the bottom of the tank and work in the fluid. In this
way fluid can be drawn below the fluid level. Sealless vertical pumps with its special bearing free design makes dry-working possible.In the standard design, the special sliding bearing makes it possible to reach standard submersion depths from 500
mm to 1500 mm. On special request additional bearing and elastic coupling models are available.

DESCRIPTION
Max. Flow: 8 m3/h Max. Head: 7 m
DESCRIPTION
Max. Flow: 18 m3/h Max. Head: 17 m
PRODUCT

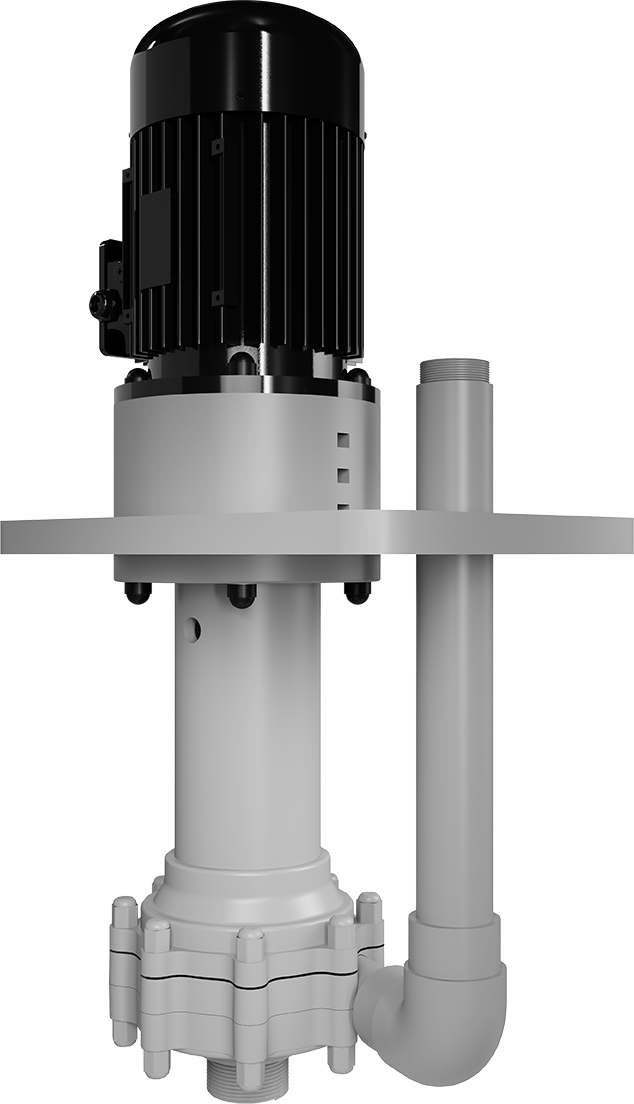

AY-9-DS
AY-9-11-DS / AY-9-13-DS / AY-9-21-DS / AY-9-31-DS / AY-9-32-DS / AY-9-33-DS
See DetailsDESCRIPTION
Max. Flow: 42 m3/h Max. Head: 29 m
DESCRIPTION
Max. Flow: 42 m3/h Max. Head: 52 m
