AY-8-1-DS / AY-8-2-DS / AY-8-3-DS
AY-8-DS
DATA

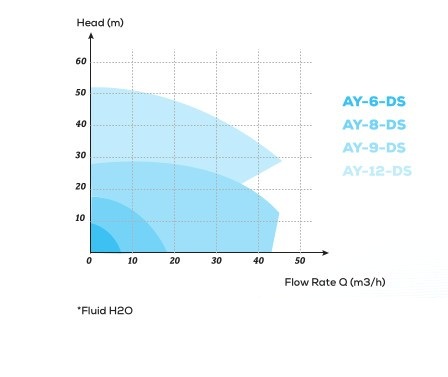

Performance Curve
* Liquid H2O.
* Motor 2900 rpm 50 Hz
DATA
Technical Specifications
Outlet
G 11/4″ f
Max. flow *
13 m3/h - 15 m3/h - 18 m3/h
Max. Head *
13 m - 14 m - 17 m
Motor
0.55 kw - 0.75 kw - 1.1 kw 2900 rpm 50 Hz
Fluid Viscocity
max 160 cps
Fluid Density
max 1.9 kg/dm3
Diameter Max suspended solids
0,5 mm
Operating
Temperature
PP- 70 °C (max)
PVDF- 95°C (max)
Available in the following materials
PP
PVDF
Connection
Male Thread- BSPP
Female Thread- BSPP
Flange
